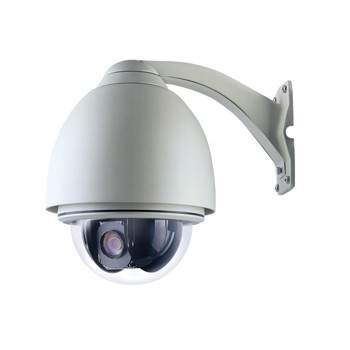

OBS-9036LA
- Built in English OSD menu
- Multi- language display, like Chinese, English, Arabic
- Accurate preset, low noise design
- Aluminum-alloy housings, built-in fan and heater
- Is compatible with famous-brand camera
- Focus and pan/tilt speed auto match
- 360°continuous pan, 90° tilt, no blind area
- 0.1°-180°/S horizontal shift, 0.1°-180°/S vertical shift,180°auto flip
- 128 presets, 8 sequences with 16 presets each
- Two points scanning, home position
- Internal data never lost when power is off
- Temperature:-40°C~+60°C
- 7 in and 2 out alarm
- Built in 3000V lightning protection, surge protection
- Camera with cooling fan, lengthen camera's life
|
Model No.
|
BS-9036LA
|
|
|
Camera
|
SONY 432X Zoom Camera
|
|
|
Image sensor
|
1/4"Sony Ex-view HAD CCD
|
|
|
Signal system
|
PAL
|
NTSC
|
|
Pixel
|
712(H)X582(V) 410K
|
752(H)X492(V) 370K
|
|
Resolution
|
480TV line
|
|
|
Sync. System
|
Internal
|
|
|
Illumination
|
0.7-0.001 Lux
|
|
|
Zoom rate
|
36x Optical£-12x Digital
|
|
|
Lens
|
f=3.4~122.4mm
|
|
|
Presets
|
128 Presets / 6 Cruise way, 16 Presets / Cruise way£»Can set presets 1-64 grade cruise speed, 1-60 second preset dwell time.
|
|
|
Scan speed
|
5 ¨C 288 Deg / S
|
|
|
Pan
|
0.5 °/S -360°/S Horizontal
|
|
|
Tilt
|
0.5°/S-180°/S Tilt
|
|
|
Level running
|
360¡ã Continuous Revolve, 180¡ã Auto Flip.
|
|
|
Protocol
|
Pelco-D/ Pelco-P/ Veint
|
|
|
Baud rate
|
1200/2400/4800/9600
|
|
|
S/N ratio
|
>52
|
|
|
AGC
|
Auto
|
|
|
BLC
|
Auto
|
|
|
Focus
|
Auto
|
|
|
Iris
|
Auto
|
|
|
Shell
|
6 inch Indoors/ Outdoors Application
|
|
|
Bracket
|
Wall or Ceiling Bracket Optional
|
|
|
Power
|
AC/ 24V 2A
|
|
|
Temperature
|
-10°C 50°C
|
|
