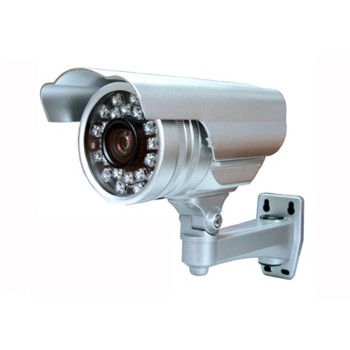

OBS 309H
|
Model |
OBS-309H |
|
|
Filter |
Double Layers Crystal |
|
|
Sensor |
1/3" Sony Super HAD CCD |
|
|
Signal |
PAL |
NTSC |
|
Pixels |
752(H) x 582(V) 440K |
768(H) x 494(V) 380K |
|
Line |
540 TV |
|
|
Illumination |
0Lux / IR ON |
|
|
Lens |
Vari-focal 9-22mm Lens |
|
|
IR LED |
24pcs pearl IR LEDs |
|
|
IR Distance |
70 Meter |
|
|
Vertical |
50Hz |
60Hz |
|
Horizontal |
15.625KHz |
15.734KHz |
|
Clock |
28.375MHz |
28.636MHz |
|
Scanning |
2:1 Interlace |
|
|
S.N.R |
≥50dB |
|
|
E.S |
1/50-1/100,000s |
1/60-1/100,000s |
|
W.B |
Auto Tracking |
|
|
B.L.C |
ON |
|
|
A.G.C |
ON |
|
|
Gamma |
0.45 |
|
|
Video Output |
1Vp-p, 75Ω |
|
|
IP Rating |
IP66 |
|
|
Bracket |
Anti Cutting Especial Bracket |
|
|
Power |
DC/12V ±10% |
|
|
Dimension |
152x193x104mm |
|
|
Weight |
2kg |
|
