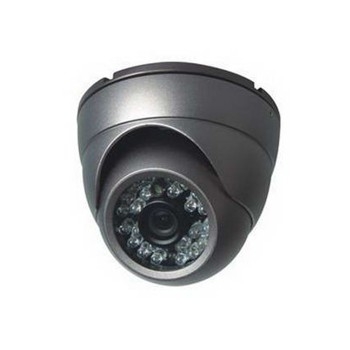

OBS-682C
|
Model |
OBS-682C |
|
|
Filter |
Double Layers Crystal |
|
|
Sensor |
1/3" Sony Super HAD CCD |
|
|
Signal |
PAL |
NTSC |
|
Pixels |
537(H) x 597(V) 320K |
537(H) x 505(V) 270K |
|
Line |
420 TV |
|
|
Illumination |
0Lux / IR ON |
|
|
Lens |
f = 3.6mm |
|
|
LED |
24pcs 5mm High Power IR LED |
|
|
IR distance |
20M |
|
|
Vertical |
50Hz |
60Hz |
|
Horizontal |
15.625KHz |
15.734KHz |
|
Clock |
18.9375MHz |
19.0699MHz |
|
Scanning |
2:1 Interlace |
|
|
S.N.R |
≥50dB |
|
|
E.S |
1/50-1/100,000s |
1/60-1/100,000s |
|
W.B |
Auto Tracking |
|
|
B.L.C |
ON |
|
|
A.G.C |
ON |
|
|
Gamma |
0.45 |
|
|
Video Output |
1Vp-p, 75Ω |
|
|
IP Rating |
IP66 |
|
|
Shell |
Water Proof & Vandal Proof |
|
|
Power |
DC/12V ±10% | |
|
Dimension |
ø93*68mm |
|
|
VolumeWeight |
1kg |
|
